IN SKAAT RIGID CORE PROCESS, A SPECIAL CREEL IS SUPPLIED TO HOLD RIGID CORE MATERIALS, WHOSE STRETCH IS CONTROLLED BY AN EXTERNAL TENSIONING DEVICE. AN EFFECTIVE STOP MOTION WITH CUTTING DEVICE TO STOP THE ROVING WHENEVER THE FILAMENT MATERIAL CUTS OR EXHAUSTS. AND SIMULTANEOUSLY STOP A FEEDING AND THE ROVING.

IT IS A TWO COMPONENT SYSTEM WITH ONE COMPONENT BEING RIGID CORE FILAMENT AND OTHER ONE IS FOR SHEATH LIKE COTTON OR SYNTHETIC STAPLE FIBRES. AS THE PRIMARY PURPOSE OF THIS SYSTEM IS TO ENHANCE THE STRENGTH OF THE YARN, THIS SYSTEM HAS POLYESTER FILAMENT IN THE CORE AND COTTON OR POLYESTER STAPLE FIBRES FOR THE SHEATH.

SKAAT RIGID CORE IS A UNIQUE YARN WHICH IS DEVELOPED WITH RIGID FIBER IN THE RING SPINNING SYSTEM. MOST OF THIS YARN USED FOR HOUSE HOLD ACTIVITIES.

RIGID FIBERS ARE:

• POLYSTER

• METAL FIBERS

• GLASS FILLED FIBERS

• ARTIFICIAL FIBERS LIKES PVA

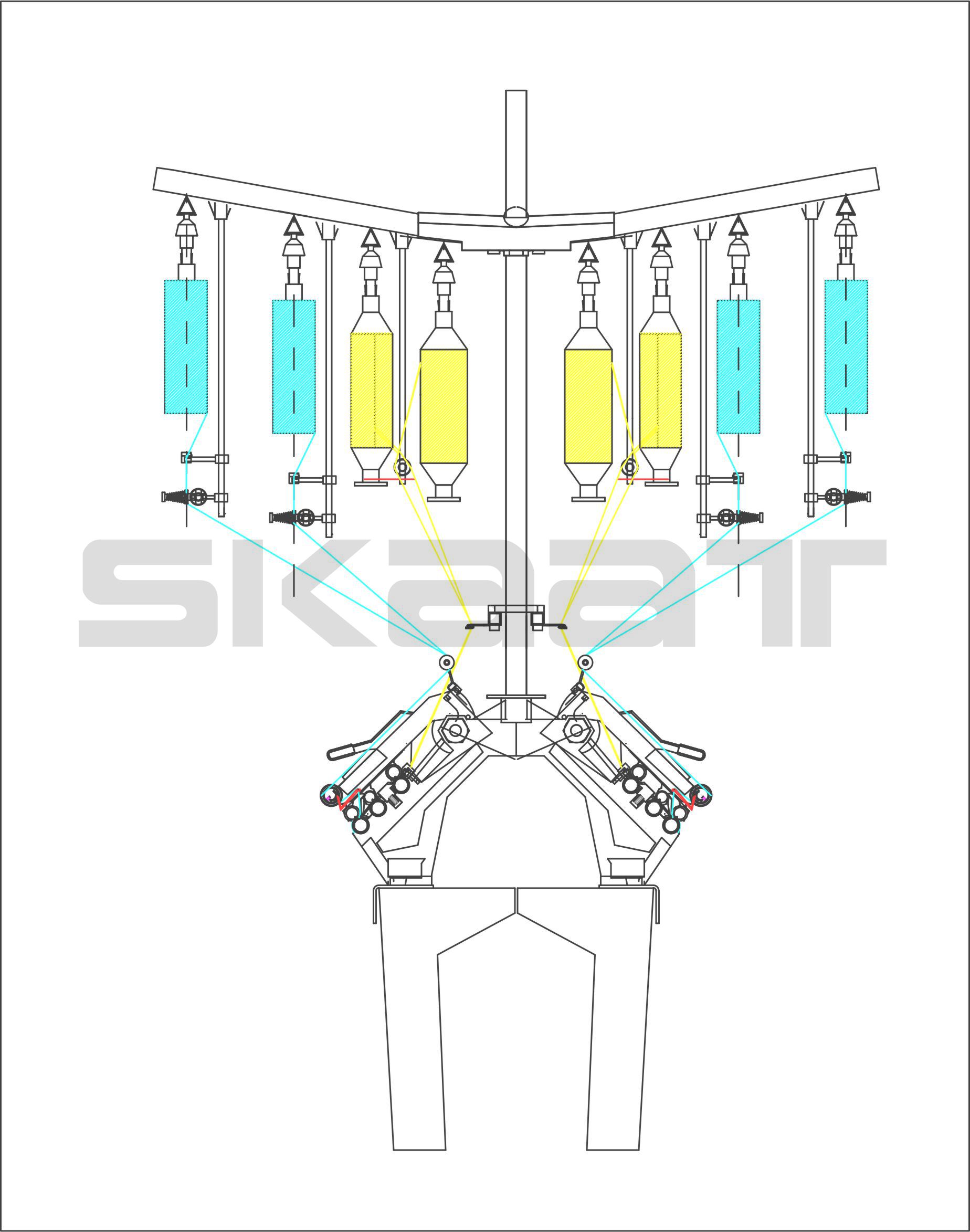

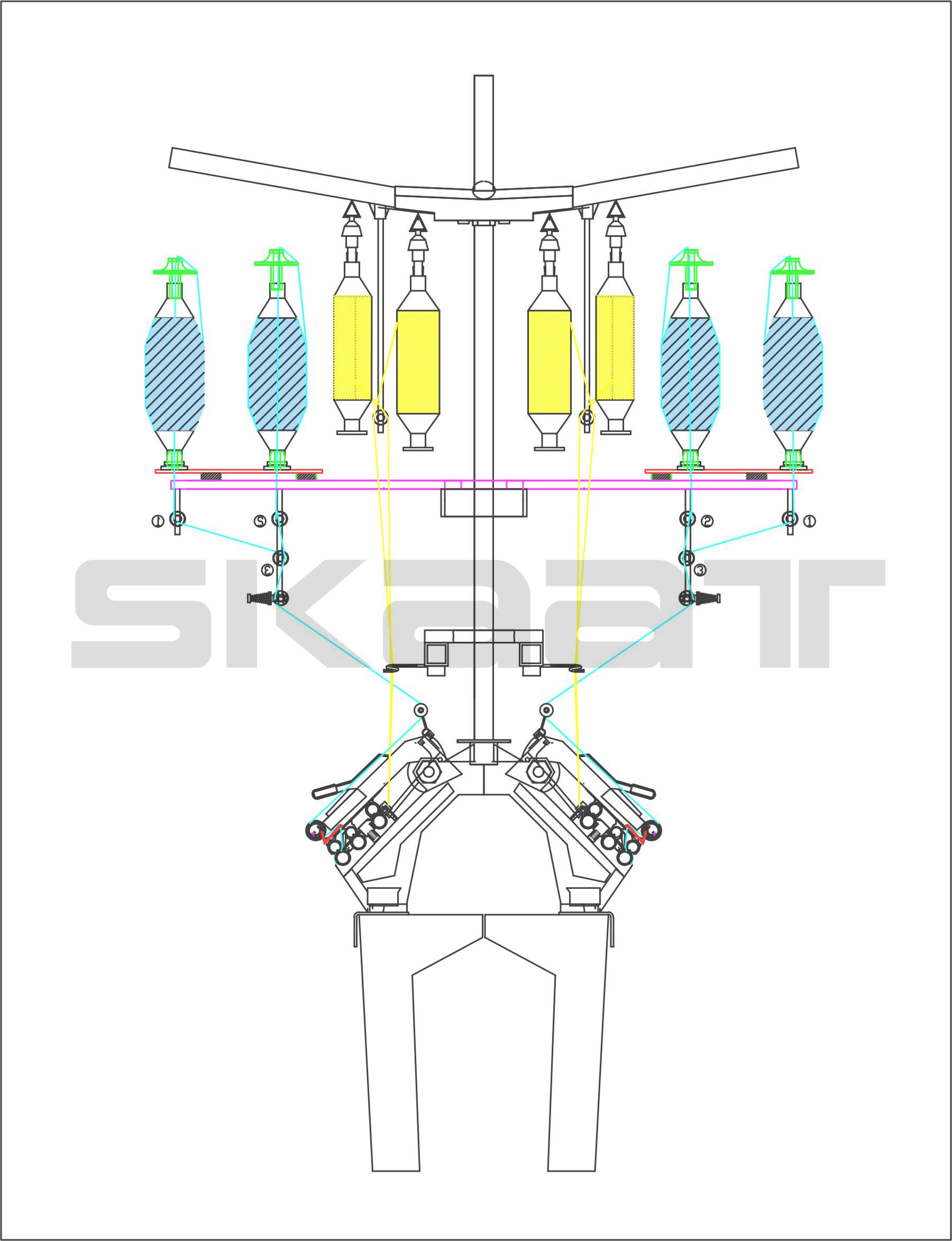

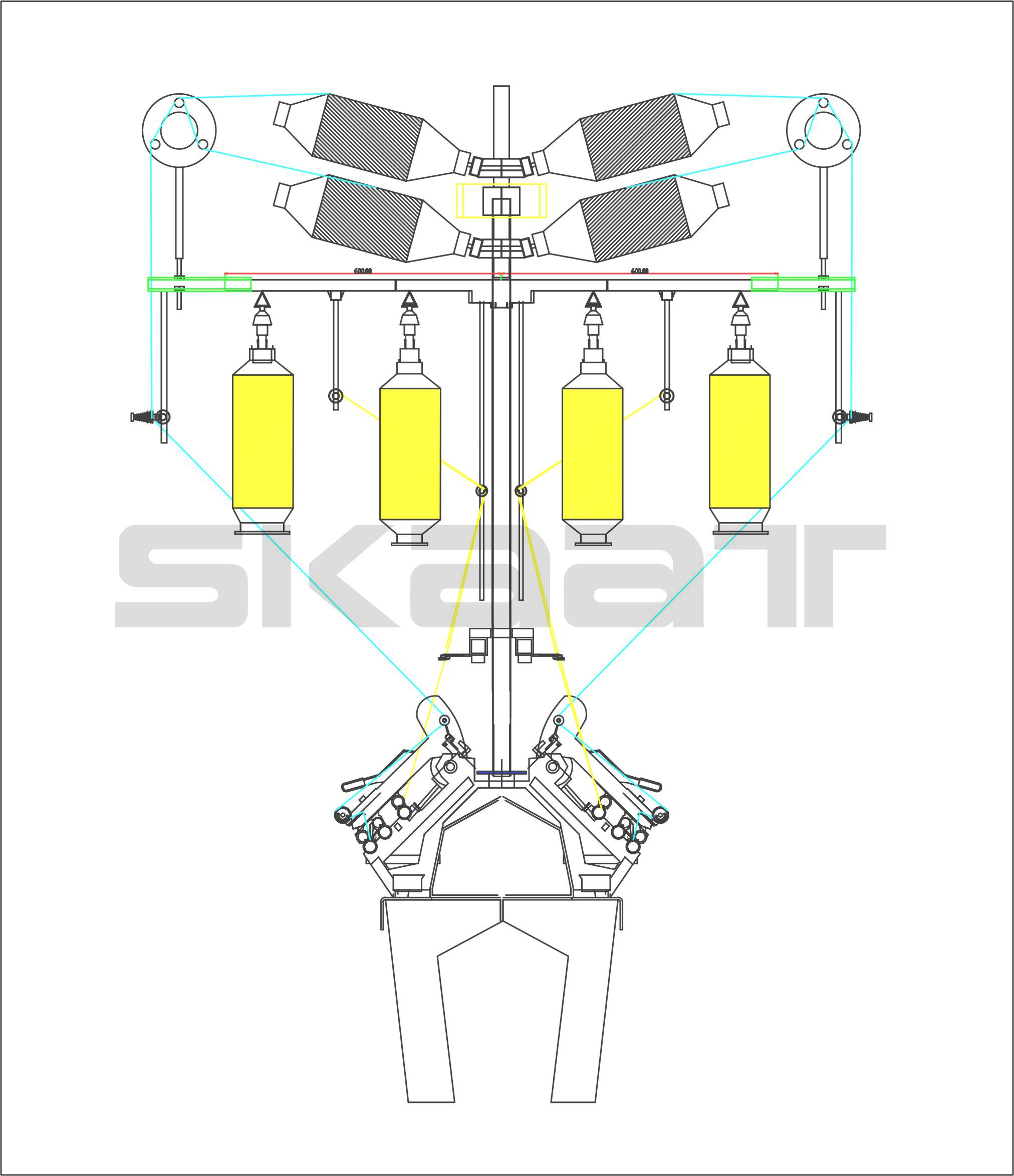

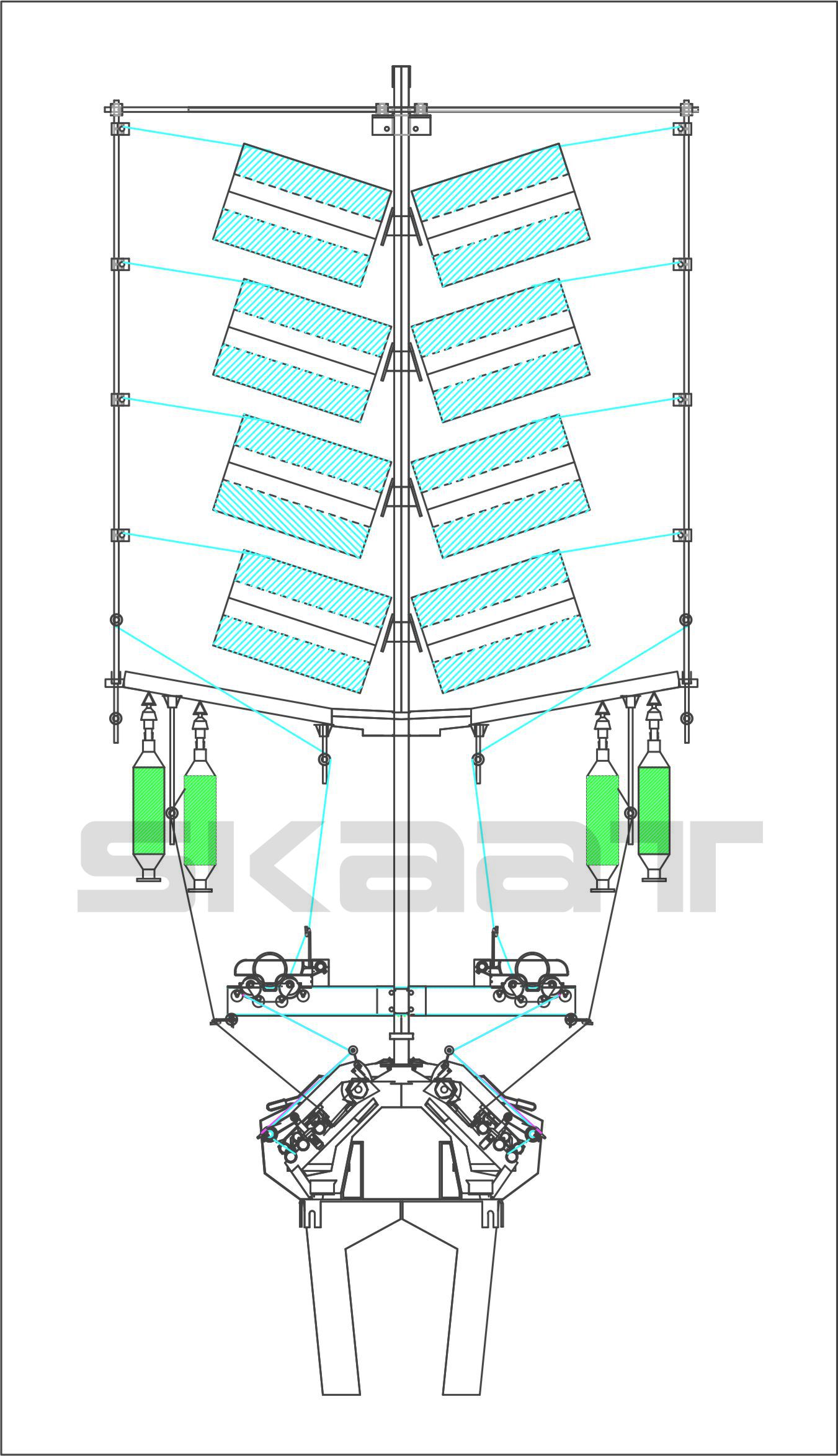

SKAAT SUPPLIES ALL THE NECESSARY CREEL MODIFICATION ACCESSORIES TO ACCOMMODATE THE BOBBINS OF CORE FILAMENT, STOP MOTION FOR THE FILAMENT AND NECESSARY GUIDES IN THE DRAFTING UNIT TO GUIDE THE FILAMENT INTO CENTRE OF THE YARN.

THIS DEVELOPMENT ENSURES FOLLOWING QUALITIES IN THE YARN.

• FILAMENT MISSING STOP MOTION.

• FILAMENT CENTERING THROUGH OUT THE YARN.

ADVANTAGE

• AUTOMATIC TRAVERSE GUIDE, HENCE NO NEED OF MANUAL SETTING.(OPTIONAL)
