Long ring frame is nothing but a ring frame having Duoflex drive at 'OFF end' (like LR6 series up to 1200 spindles). For Duoflex drive ring frame, 'DS2L' Model is designed for slub. In this model, middle and back bottom fluted roller of the ring frame must be spitted at the middle to provide separate drives for both the ends.

Instead of machine drive, Two Servo motors are used to drive the middle and back bottom fluted roller (once at 'Gear End' and another at 'Off end'). Two sets of specially designed Servo drive, Servo motor and a SKAAT variator gear box are used to drive both 'Gear end' and 'Off end' of the ring frame independently without slippage.

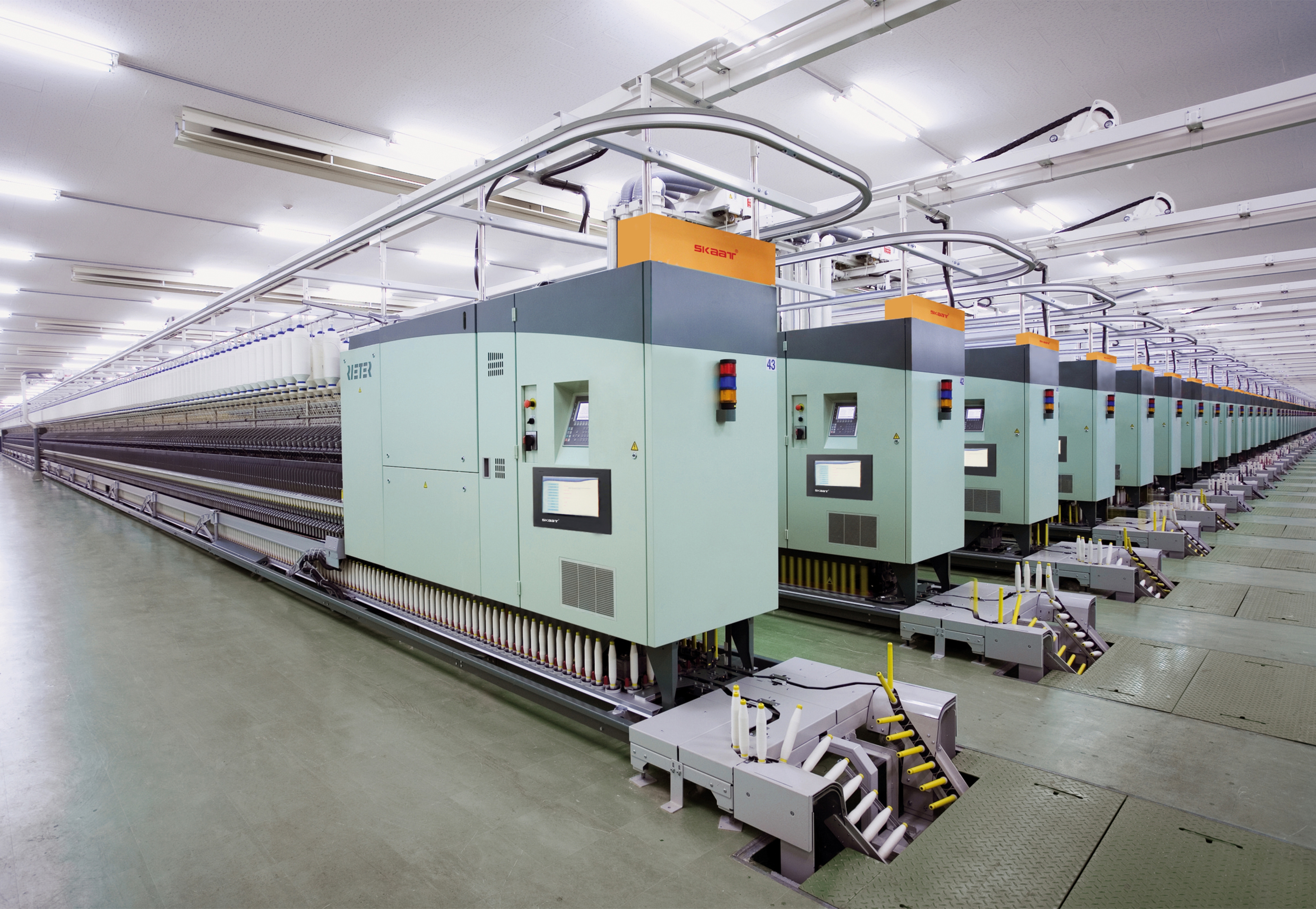

Drive Transmission by means of 'mechanical coupling' at Gear end and "wheel drive" at off end. Both the servo motors are synchronized to produce uniform quality of slub yarn. Gear end of the machine is entirely covered by our special panel. All our drive, motor and electrical components are placed inside this panel. Touch insustrial computer with 15" wide screen is provided on the panel for easy view and Hassle free programming.
